Harley-Davidson Iron 883 Specifications & Features

Harley Davidson

Rs.9.23 Lakh*
Get On Road Price

Harley-Davidson Iron 883 Summary

Iron 883 key highlights
Displacement883 cc
Mileage20 kmpl
Kerb Weight256 kg
  • Black Denim
  • Industrial Gray Denim
  • Wicked Red
  • Rawhide Denim

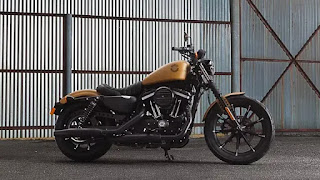

  • Rugged Gold Denim
  • Silver Flux / Black Fuse

Harley Davidson

Harley Davidson

Harley Davidson

Harley-Davidson Iron 883 Mileage

As reported by Harley-Davidson Iron 883 owners, the real mileage of Iron 883 is 18 kmpl. As per ARAI, the average of Harley-Davidson Iron 883is 20 kmpl. It delivers better mileage that 79% of cruisers.
 With a fuel tank capacity of 12.5 litres, this bike can go upto 240 kms on full tank.

Iron 883 Average

Arai mileageARAI certified mileage20 kmpl
Owners mileageOwner reported mileage18 kmpl

Harley Davidson

Iron 883 Specifications & Features


 Iron 883 Engine & TransmissionEngine & Transmission


Displacement883 cc
Emission StandardBS-IV
Max Power50 bhp @ 5,500 rpm
Maximum Torque70 Nm @ 3,500 rpm
Bore76 mm
Stroke97 mm
Valves Per Cylinder2
Compression Ratio9.0:1

Fuel Delivery SystemFuel Injection
Fuel TypePetrol
IgnitionElectronic Sequential Port Fuel Injection (ESPFI)
Spark Plugs1 Per Cylinder
Cooling SystemAir Cooled
Gearbox TypeManual
No. of Gears5
Transmission TypeBelt Drive
ClutchWet Multiplate

Iron 883 Brakes, Wheels & SuspensionBrakes, Wheels & Suspension

Front Brake TypeDisc
Front Brake Size292 mm
Rear Brake TypeDisc
Rear Brake Size292 mm
Calliper TypeDual-piston front, single-piston rear
Front Wheel Size19 inch
Rear Wheel Size16 inch

Front Tyre Size100/90B19 57H
Rear Tyre Size150/80B16 77H
Tyre TypeTubeless
Radial TyresYes
Wheel TypeAlloy
Front Suspension39 mm Showa
Rear SuspensionCoil Over, Preload Dual Adjustable

Harley Davidson
Iron 883 Dimensions & ChassisDimensions & Chassis

Kerb Weight256 kg
Overall Length2,185 mm
Overall Width820 mm
Overall Height1,120 mm
Wheelbase1,515 mm
Ground Clearance140 mm
Seat Height760 mm
Chassis TypeMild Steel,Tubular Frame

Iron 883 Fuel Efficiency & PerformanceFuel Efficiency & Performance

Braking System Dual Channel ABS
Fuel GuageYes

Stand AlarmYes
Stepped SeatNo
No. of Tripmeters2
Tripmeter TypeDigital
Low Fuel IndicatorYes
Low Oil IndicatorYes
Low Battery IndicatorYes
Pillion BackrestNo
Pillion GrabrailNo

Shift LightYes
Electric System12V DC
Battery12V, 12-AMP/Hour.200 CCA
Headlight TypeBulb and Reflector Type
Headlight Bulb Type55/60 W
Brake/Tail LightLED Type
Turn SignalYes
Pass LightYes

Pillion Seat--
Pillion FootrestYes
Digital Fuel GuageYes
Start TypeElectric Start

Harley Davidson


  • Battery12V, MF
  • HeadlightHalogen
  • Tail LightLED

Harley-Davidson Iron 883 Overview

Harley Davidson

Harley Davidson Iron 883 is an entry level cruiser and is assembled in India.

This one has more sporty credentials and as the name suggests is the recipient of an 883cc 4-valve engine that produces 50bhp.
 The 6 speed gearbox transmits power to the rear wheel via a transmission belt. A tubular steel frame forms the basis of the motorcycle and it gets a 100/90 B19 tyre at the front and 150/80 B16 at the rear tyre.
The bike weighs in at 260kg and is available in 3 colours vivid black, big blue pearl and black denim.
